Ubuntu(Recommended)

OS: Ubuntu 20.04 (amd64) and above, you can download it here https://releases.ubuntu.com/20.04.6/ubuntu-20.04.6-live-server-amd64.iso

Port configuration

Port/protocol	Firewall rule	Reason/caveats
8545/TCP	Block all traffic.	This is the JSON-RPC port for your execution node's Query API. You (and apps) can use this port to check execution node status, query execution-layer chain data, and even submit transactions. This port generally shouldn't be exposed to the outside world.
3500/TCP	Block all traffic.	This is the JSON-RPC port for your beacon node's Query API. You (and apps) can use this port to check beacon node status and query consensus-layer chain data. This port generally shouldn't be exposed to the outside world.
8551/TCP	Block all traffic.	Your beacon node connects to your execution node's Engine API using this port. Inbound and outbound traffic should be allowed through this port only if your local beacon node is connecting to a remote execution node.
4000/TCP	Block all traffic.	Your validator uses this port to connect to your beacon node via gRPC. Inbound and outbound traffic should be allowed through this port only if your local validator is connecting to a remote beacon node.
*/UDP+TCP	Allow outbound traffic.	To discover peers, Prysm's beacon node dials out through random ports. Allowing outbound TCP/UDP traffic from any port will help Prysm find peers.
13000/TCP	Allow inbound and outbound traffic.	After we discover peers, we dial them through this port to establish an ongoing connection for libp2p and through which all gossip/p2p request and responses will flow.
12000/UDP	Allow inbound and outbound traffic.	Your beacon node exposes this UDP port so that other Ethereum nodes can discover your node, request chain data, and provide chain data.
33687/TCP+UDP	Allow inbound and outbound traffic.	33687/TCP is your execution node's listener port, while 33687/UDP is its discovery port. This rule lets your execution node connect to other peers.

Port/protocol

Firewall rule

Reason/caveats

8545/TCP

Block all traffic.

This is the JSON-RPC port for your execution node's Query API. You (and apps) can use this port to check execution node status, query execution-layer chain data, and even submit transactions. This port generally shouldn't be exposed to the outside world.

3500/TCP

Block all traffic.

This is the JSON-RPC port for your beacon node's Query API. You (and apps) can use this port to check beacon node status and query consensus-layer chain data. This port generally shouldn't be exposed to the outside world.

8551/TCP

Block all traffic.

Your beacon node connects to your execution node's Engine API using this port. Inbound and outbound traffic should be allowed through this port only if your local beacon node is connecting to a remote execution node.

4000/TCP

Block all traffic.

Your validator uses this port to connect to your beacon node via gRPC. Inbound and outbound traffic should be allowed through this port only if your local validator is connecting to a remote beacon node.

*/UDP+TCP

Allow outbound traffic.

To discover peers, Prysm's beacon node dials out through random ports. Allowing outbound TCP/UDP traffic from any port will help Prysm find peers.

13000/TCP

Allow inbound and outbound traffic.

After we discover peers, we dial them through this port to establish an ongoing connection for libp2p and through which all gossip/p2p request and responses will flow.

12000/UDP

Allow inbound and outbound traffic.

Your beacon node exposes this UDP port so that other Ethereum nodes can discover your node, request chain data, and provide chain data.

33687/TCP+UDP

Allow inbound and outbound traffic.

33687/TCP is your execution node's listener port, while 33687/UDP is its discovery port. This rule lets your execution node connect to other peers.

Install auto-program

With checkpoint sync configured, your beacon node will begin syncing from a recently finalized checkpoint instead of syncing from genesis. This can make installations, validator migrations, recoveries, and network deployments way faster.

wget -c https://pre-alpha-download.opside.network/testnet-auto-install-v2.tar.gz
tar -C ./ -xzf testnet-auto-install-v2.tar.gz
chmod +x -R ./testnet-auto-install-v2
cd ./testnet-auto-install-v2

Start your beacon node's synchronization from genesis, it can take hours.

wget -c https://pre-alpha-download.opside.network/testnet-auto-install.tar.gz
tar -C ./ -xzf testnet-auto-install.tar.gz
chmod +x -R ./testnet-auto-install
cd ./testnet-auto-install

This will download the auto-install-program and make it executable.

Install validator clients

./install-ubuntu-en-1.0.sh

Follow the CLI prompts to generate your keys. You will need to enter:

1. Your withdrawal Lumoz address(which is used to receive your validator rewards and your deposit when you exit)

2. Password(which is used to encrypt your validator signing key)

3. Repeat your withdrawal Lumoz address

4. Repeat your Password

Then there will be 24 mnemonic seed phrases. This is highly sensitive and should never be exposed to other people or networked hardware.

You should now have your mnemonic written down in a safe place and a keystore saved for each of your validators.
Please make sure you keep these safe, preferably offline.

Follow the CLI prompts to:

Enter your seed phrase(separated with space)
Waiting for the validator key generated
Waiting for the nodes launched

Check the logs

# show the execution client logs
opside-chain/show-geth-log.sh

# show the consensus client logs
opside-chain/show-beaconChain-log.sh

# show the validator logs
opside-chain/show-validator-log.sh

After client installed, ensure you are fully synced before submitting your staking deposit. This can take several days.

Example of geth logs

# show the execution client logs
opside-chain/show-geth-log.sh

You will see:

INFO [05-01|18:14:25.789] Looking for peers peercount=5 tried=3 static=6
INFO [05-01|18:14:36.039] Imported new potential chain segment number=48883 hash=5ec950..75d245 blocks=1 txs=0
mgas=0.000 elapsed=530.471µs mgasps=0.000 dirty=2.28MiB
INFO [05-01|18:14:36.041] Chain head was updated number=48883 hash=5ec950..75d245 root=5b148e..5d226a elapsed=97.462µs

Check here to see if the block height is close to the[number=48883], if yes, it's time for IDE to be deposited.

Deposit

Upload deposit file

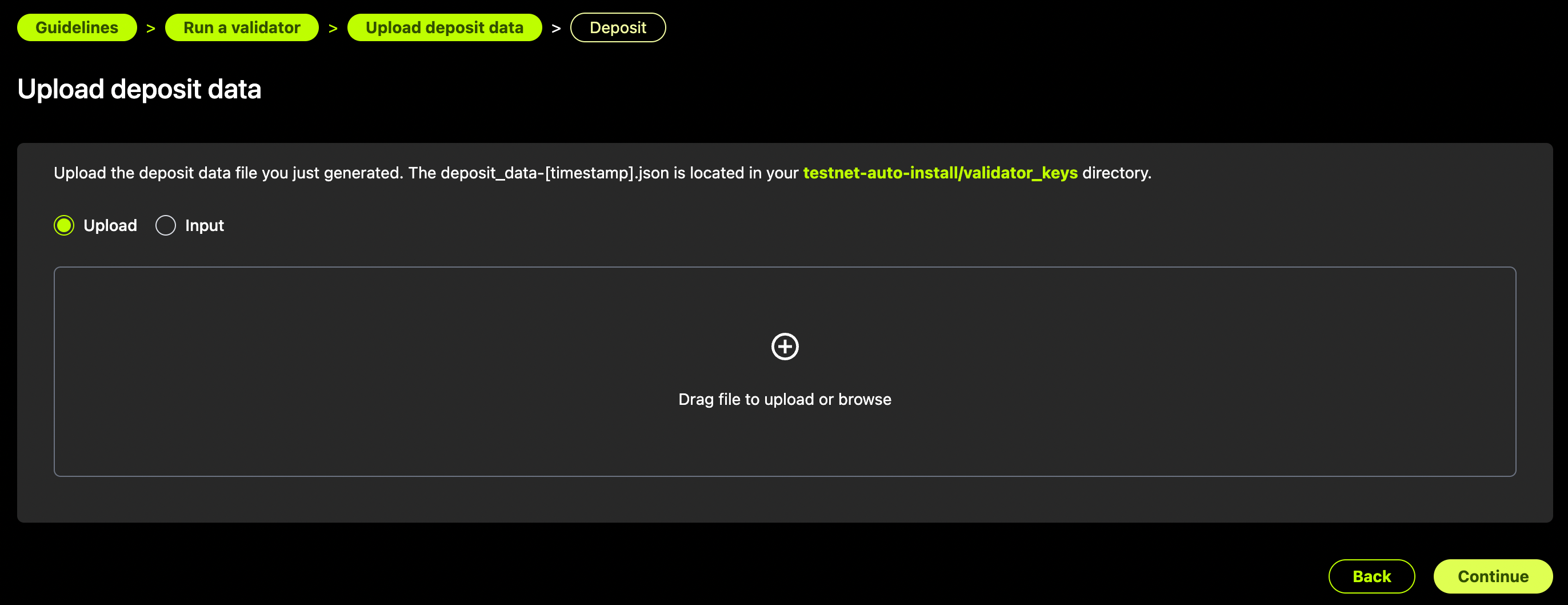

Go to Validator Launchpad, follow the steps to enter the Upload deposit data page, then upload the deposit data file you just generated.The deposit_data-[timestamp].json is located in directory testnet-auto-install/validator_keys/.

For MacOS, the deposit_data-[timestamp].json located in directory opside-staking-deposit-cli/validator_keys/

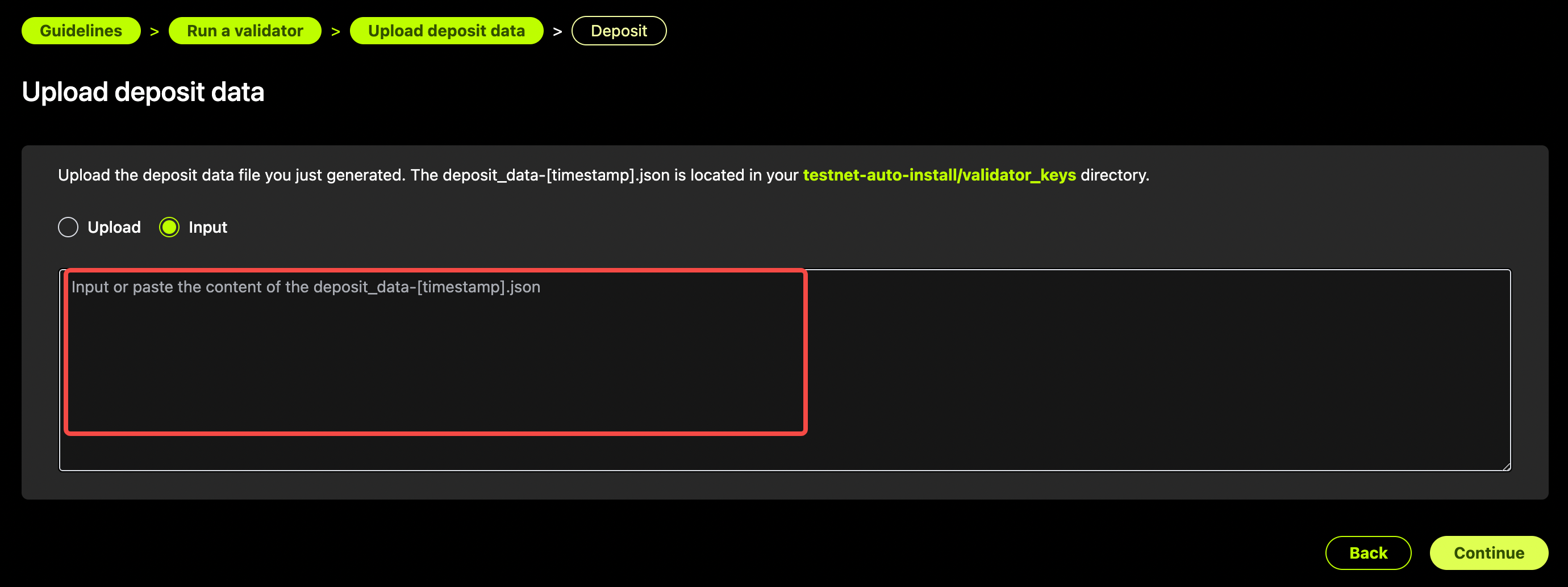

Or input the content of the deposit_data-[timestamp].json:

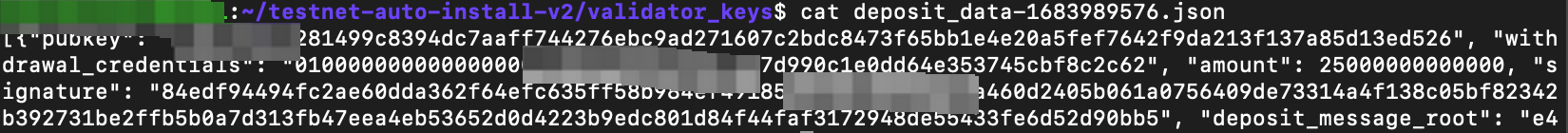

Use cat deposit_data-[timestamp].json to show the content.

Copy the content and paste it here:

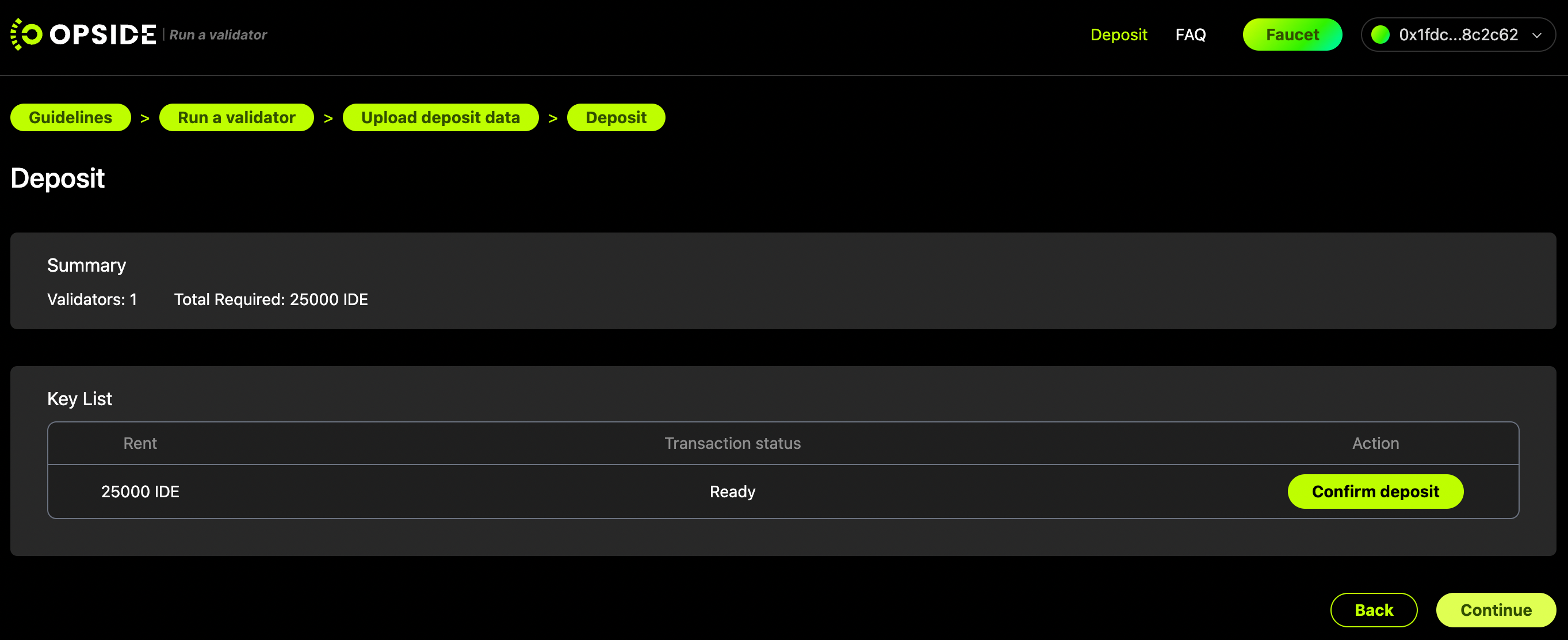

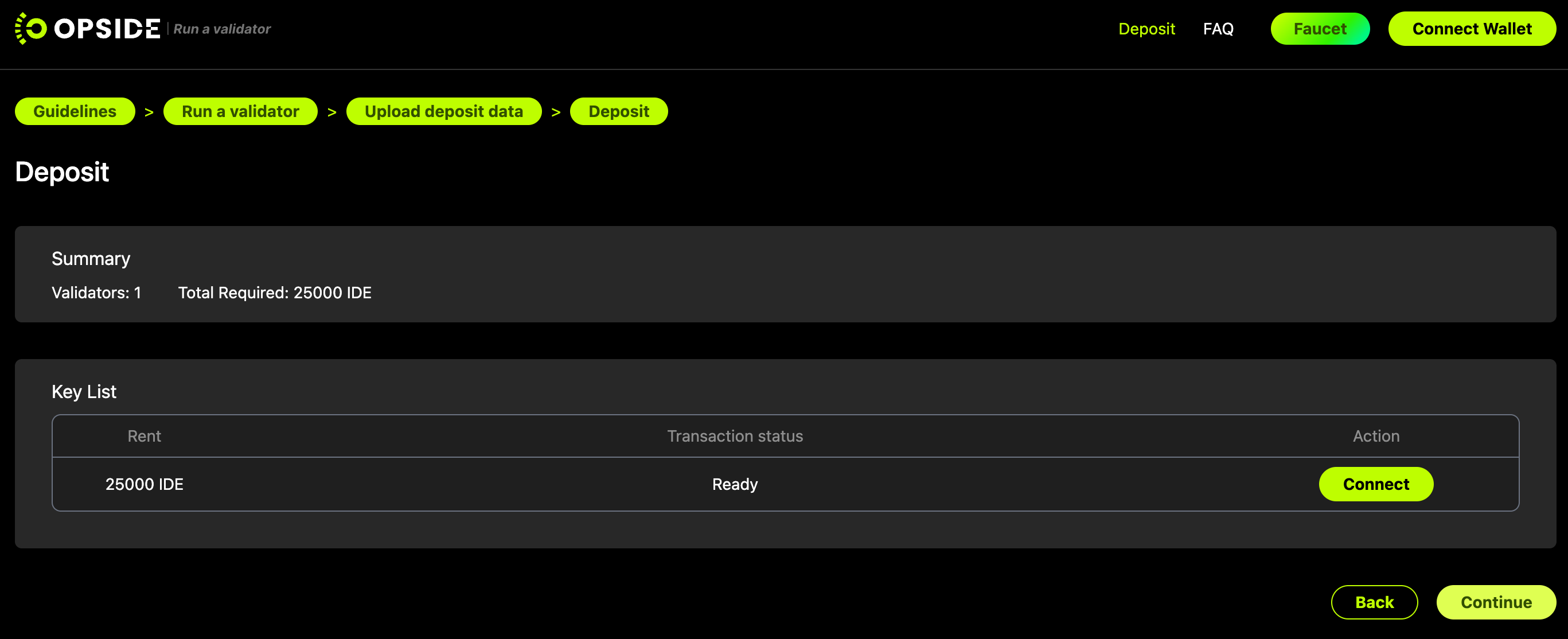

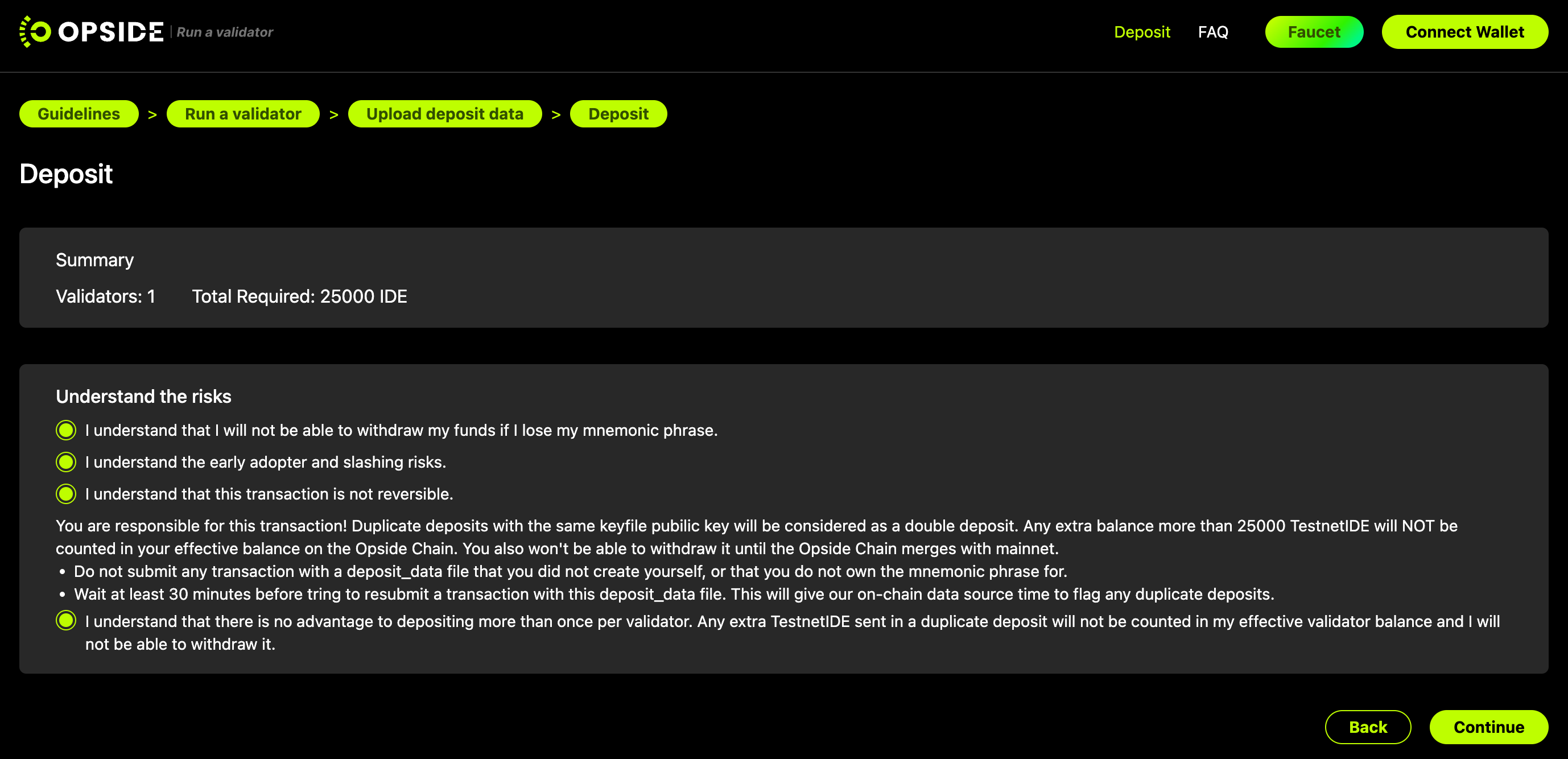

Click Continue.
